Diamond Metal Lath
Reliable Metal Lath Solutions for Stucco & Plaster
Diamond Metal Lath | Expanded Metal Lath for Stucco and Plaster Systems
Diamond Metal Lath, also known as metal lathing, wire lath, or expanded metal lath, is a versatile galvanized steel mesh product designed for stucco, plaster, and construction reinforcement applications. Its expanded diamond-shaped structure provides an effective mechanical key for plaster and stucco, helping create a strong bond between the coating and the underlying surface.
Designed for a variety of interior and exterior applications, Diamond Metal Lath provides durability and reliable reinforcement for walls, ceilings, partitions, and other construction surfaces. As a professional metal lath manufacturer, ALLIEDMESH supplies galvanized metal lath for different project requirements, with product specifications and configurations available according to customer needs.

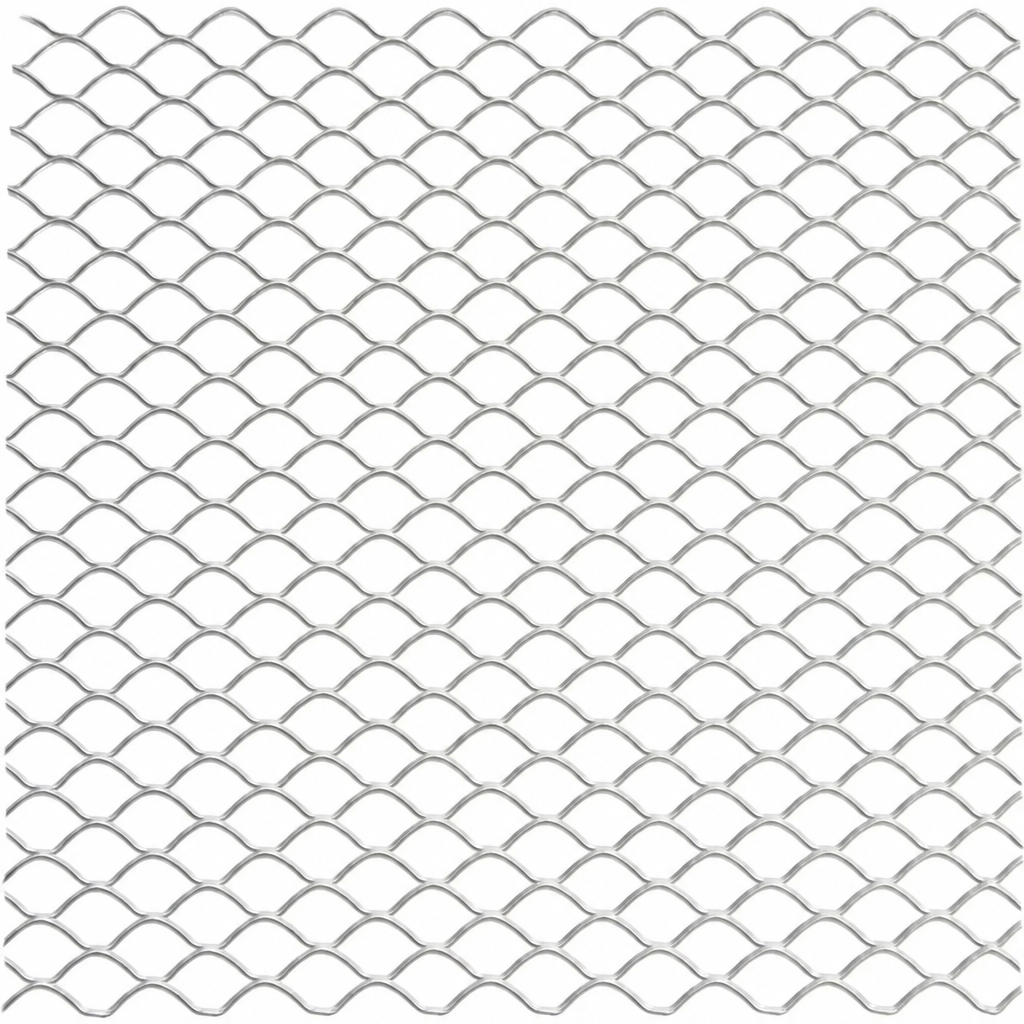

Flat Diamond Metal Lath
Flat Diamond Mesh Lath is a standard expanded metal lath designed for general stucco and plaster applications. Manufactured from galvanized steel sheet, its diamond-shaped mesh structure provides excellent mechanical bonding between the lath and plaster materials.
It is widely used for interior and exterior walls, ceilings, partitions, and renovation projects where a reliable plaster reinforcement base is required.
- Standard flat profile for easy installation
- Excellent plaster and stucco bonding
- Suitable for walls, ceilings and partitions
- Galvanized and stainless steel options

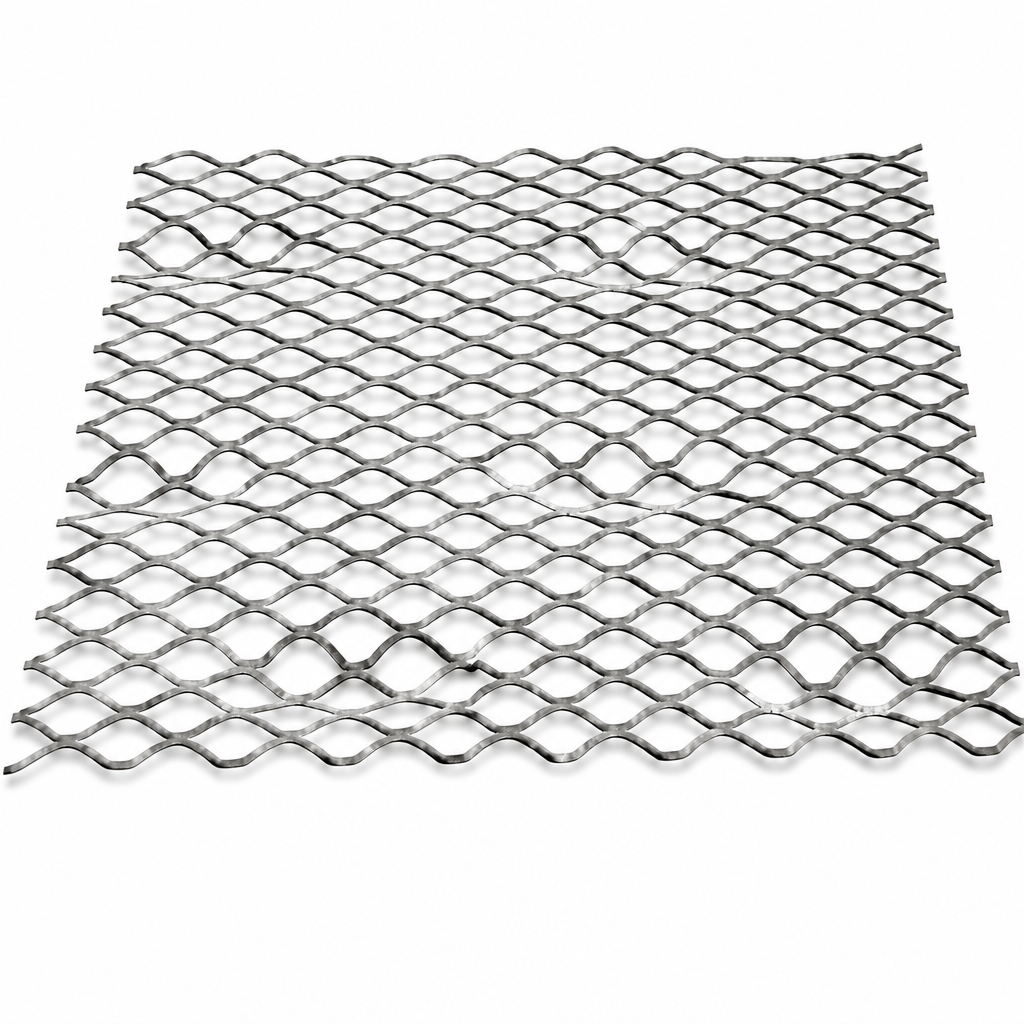

Self-Furring Dimpled Diamond Metal Lath
Self-Furring Dimpled Diamond Metal Lath is manufactured with raised dimples formed into the expanded metal sheet, creating a space between the lath and substrate.
This self-furring design improves plaster penetration and enhances mechanical bonding. It is commonly used for exterior stucco systems, masonry surfaces and demanding plaster work.
- Built-in self-furring function
- Improves plaster embedment and bonding
- Better support for exterior stucco systems
- Galvanized coating for corrosion resistance

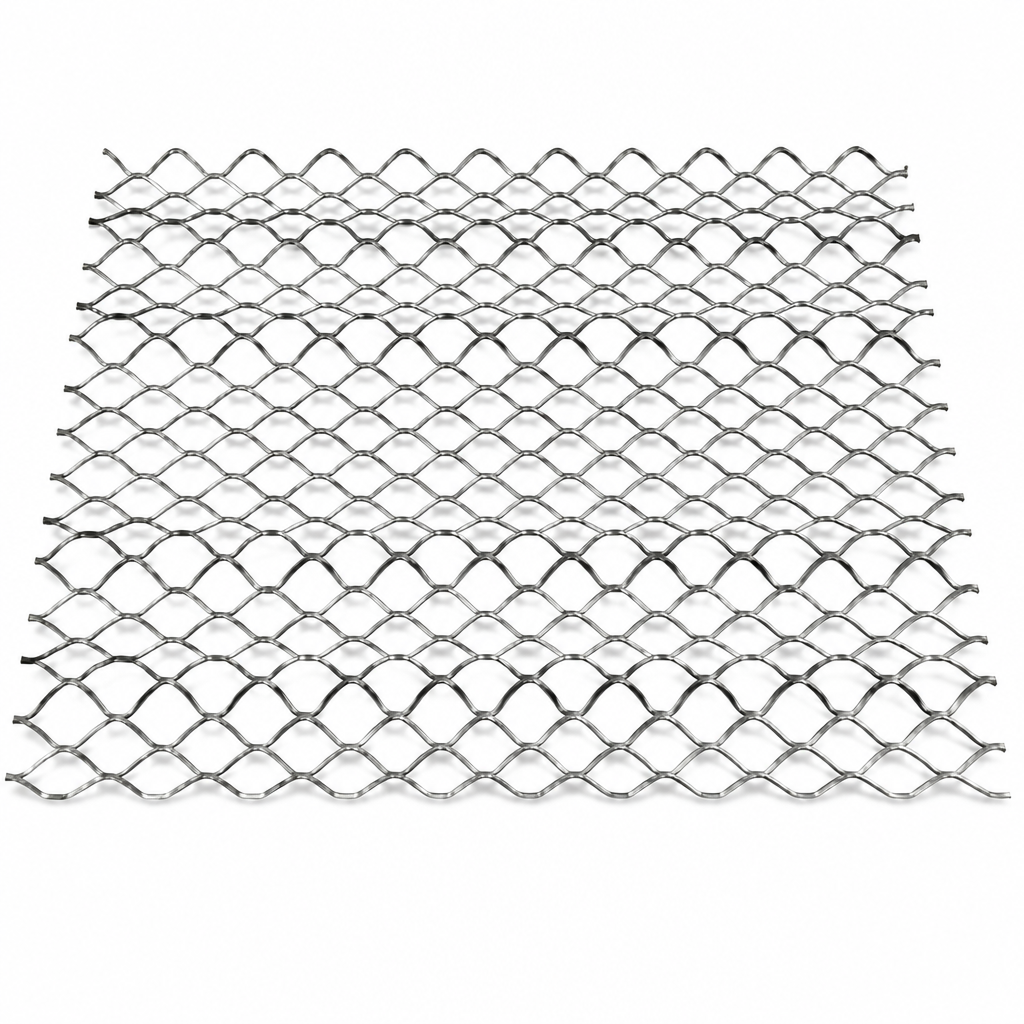

Self-Furring V-Groove Diamond Metal Lath
Self-Furring V-Groove Diamond Metal Lath features continuous V-shaped grooves integrated into the expanded metal sheet. The reinforced groove structure increases rigidity while providing self-furring capability.
It is suitable for high-performance stucco, plaster walls, ceilings and construction systems requiring additional strength and stability.
- Reinforced V-groove improves stiffness
- Creates consistent plaster keying space
- Excellent strength and impact resistance
- Suitable for demanding stucco applications
Diamond Metal Lath Specifications
| Product Type | Diamond Mesh Lath or Diamond Metal Lath |
|---|---|
| Standard Weight | 1.75 / 2.50 / 3.40 lbs per sq. yd. |
| Sheet Size | 27" × 97"or 27" × 96" |
| Pieces Per Bundle | 10 pcs |
| Bundles Per Pallet | 25 or 50 bundles |
| Coverage Per Bundle | 20 sq. yds. per bundle |
| Packing | Standard Export Package or Customized |
How to Install Diamond Metal Lath
Diamond Metal Lath provides a reinforcement base for stucco and plaster applications. Correct installation helps support proper plaster coverage and creates a stable surface for the finished coating. Follow the project specifications and the requirements of the selected wall assembly.
Diamond Metal Lath for stucco and plaster reinforcement.
Prepare the Substrate
Check the wall or ceiling substrate for stability and suitable fixing points. Install the required weather-resistive barrier and drainage components where specified for the wall assembly.
Position the Metal Lath
Position the sheets according to the specified installation direction and project requirements. Ensure the lath is properly supported by the substrate or framing.
Overlap Adjacent Sheets
Overlap adjoining sheets and end joints as required by the applicable specification. Keep joints properly aligned and avoid unsupported edges or gaps.
Fasten the Lath Securely
Use suitable corrosion-resistant fasteners for the substrate and application. Follow the specified fastening pattern and spacing to secure the lath firmly in place.
From Production to Shipment
Every order goes through a controlled process from production to final loading. We focus on product quality, careful handling and secure packaging at every stage.

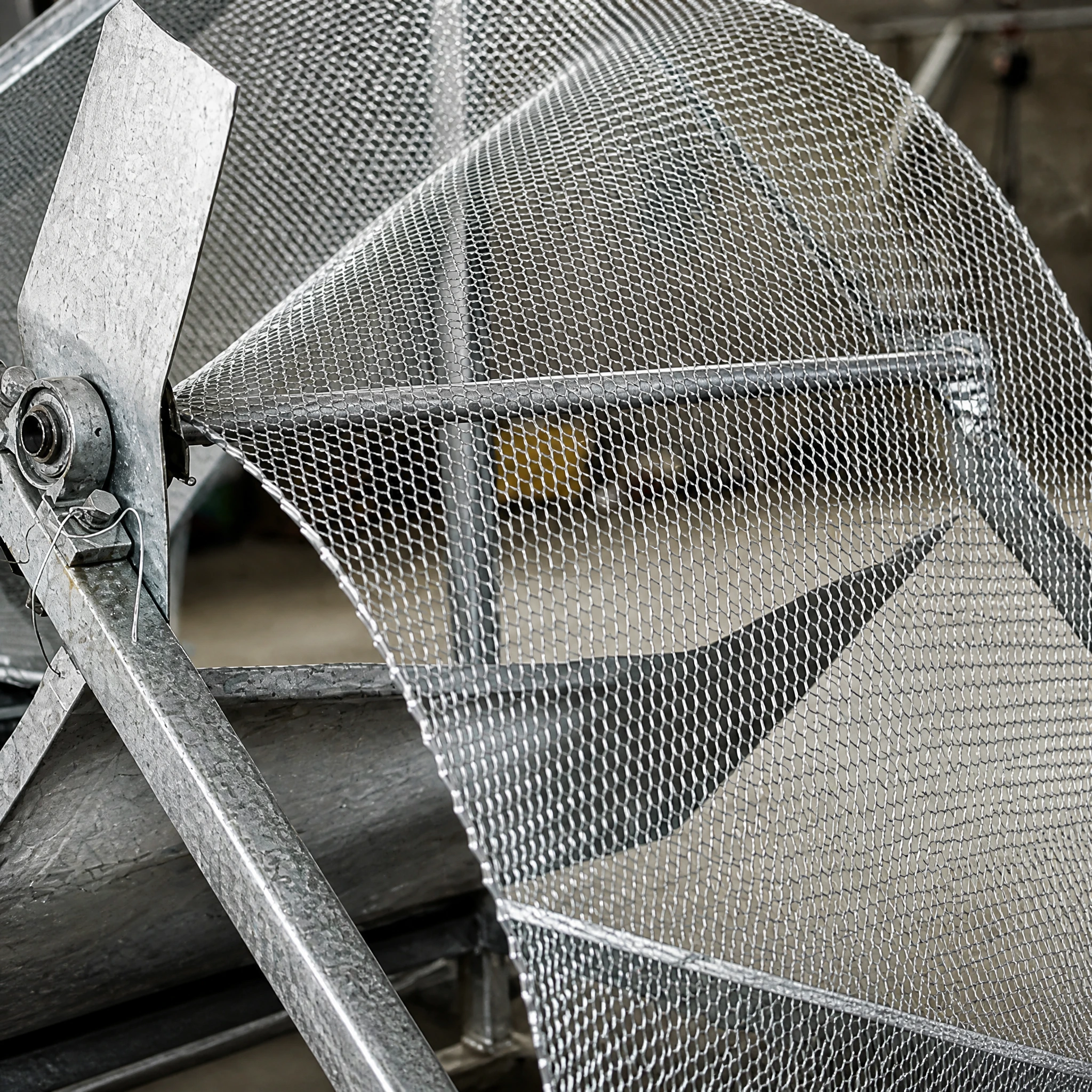

Manufacturing
Metal mesh and building products are manufactured using our production equipment and established manufacturing processes.

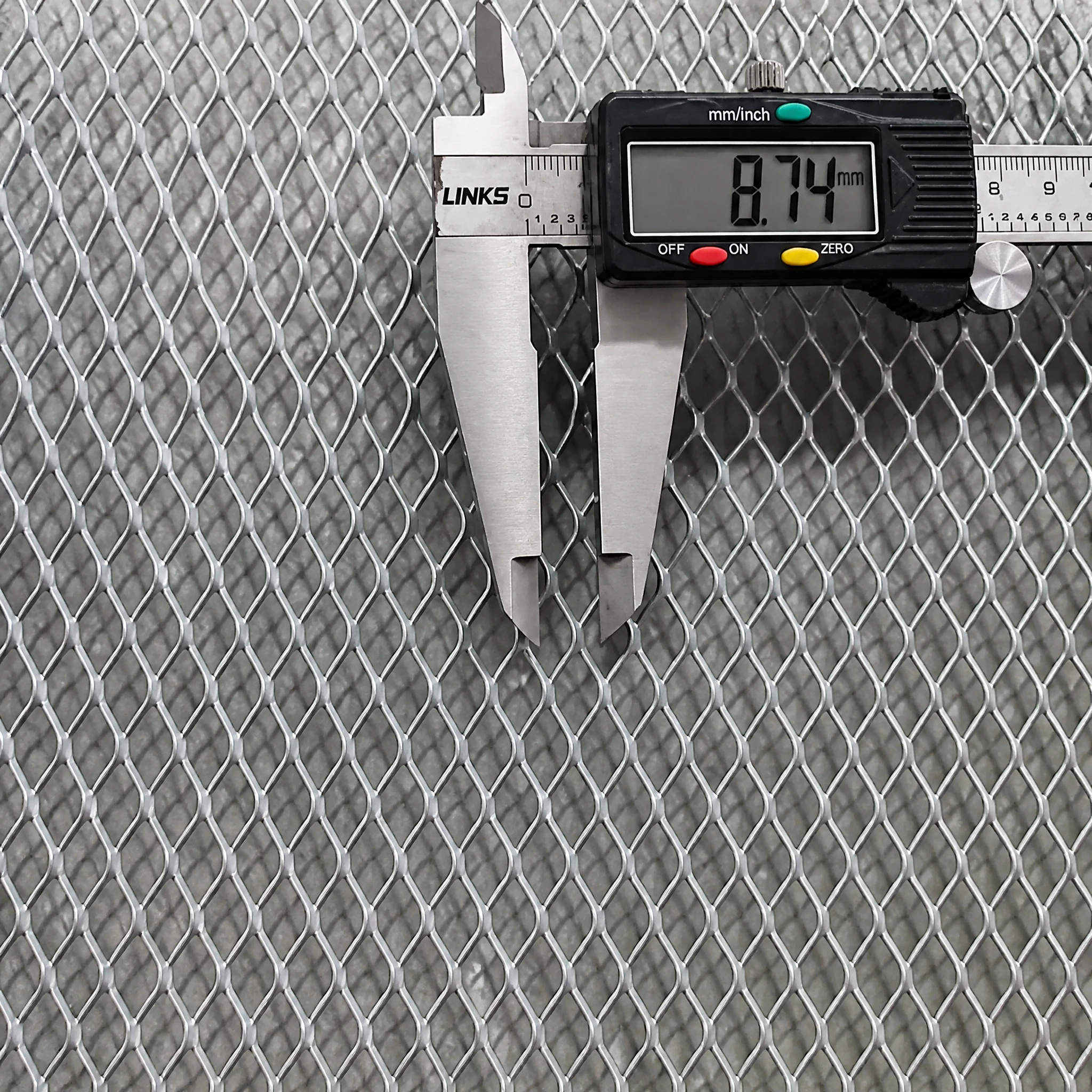

Quality Inspection
Finished products are checked for dimensions, mesh pattern, surface condition and overall product quality before packing.

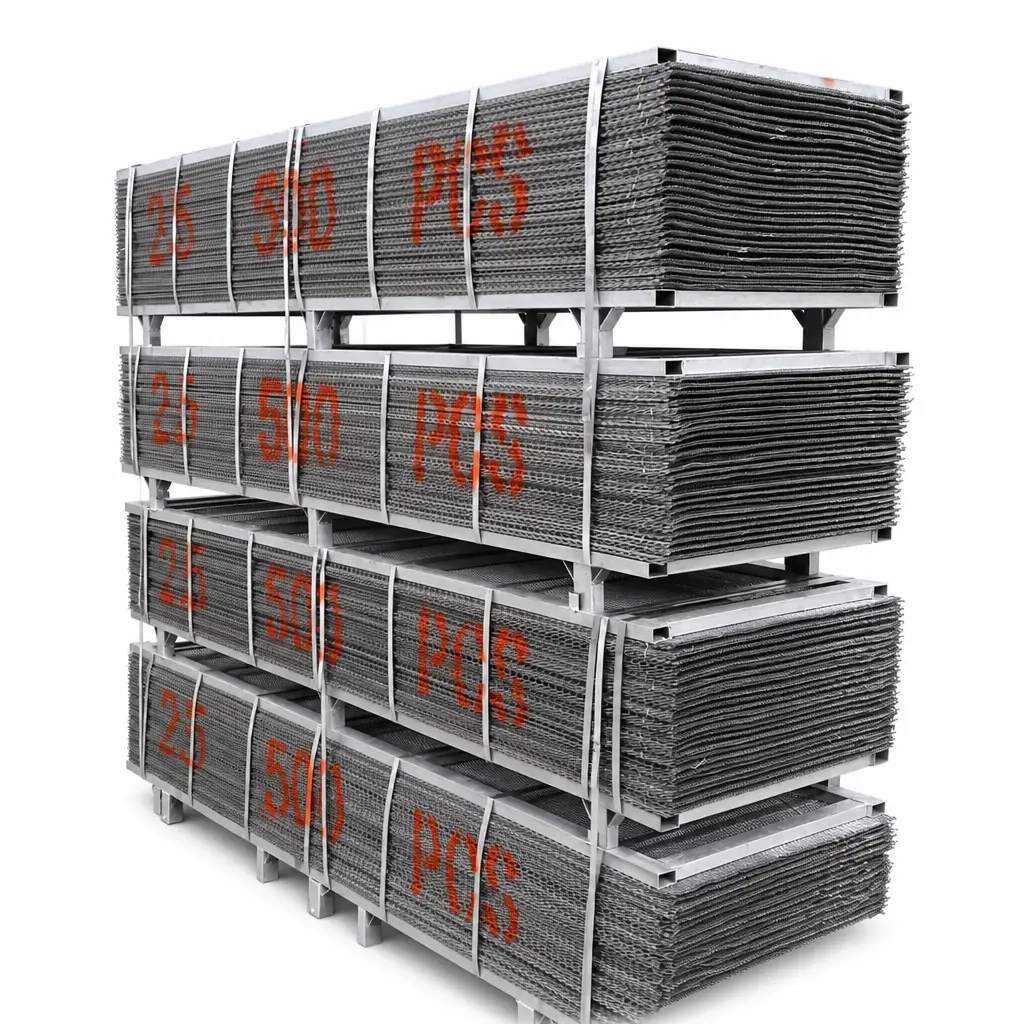

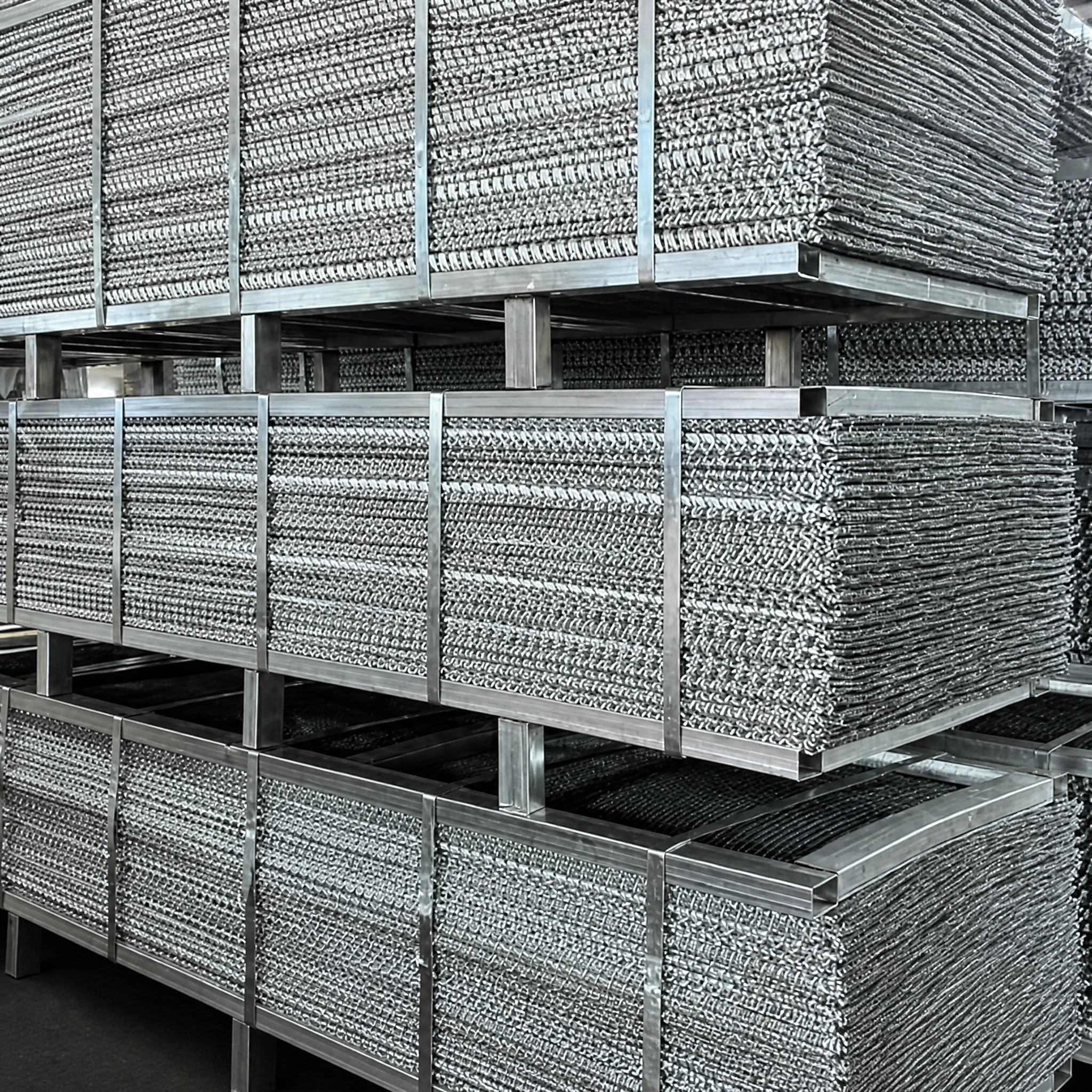

Professional Packing
Products are carefully packed and protected according to the product type and shipping requirements.

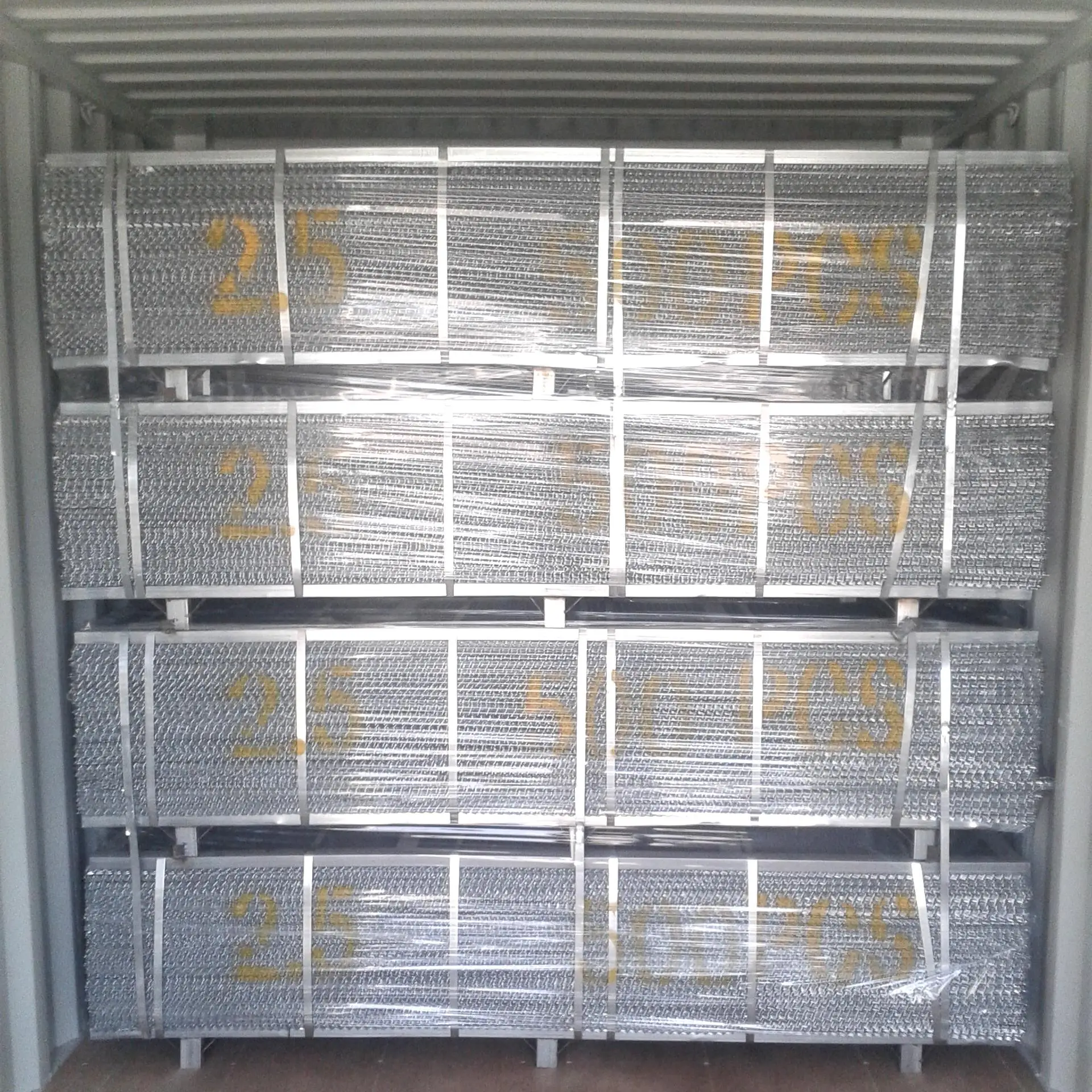

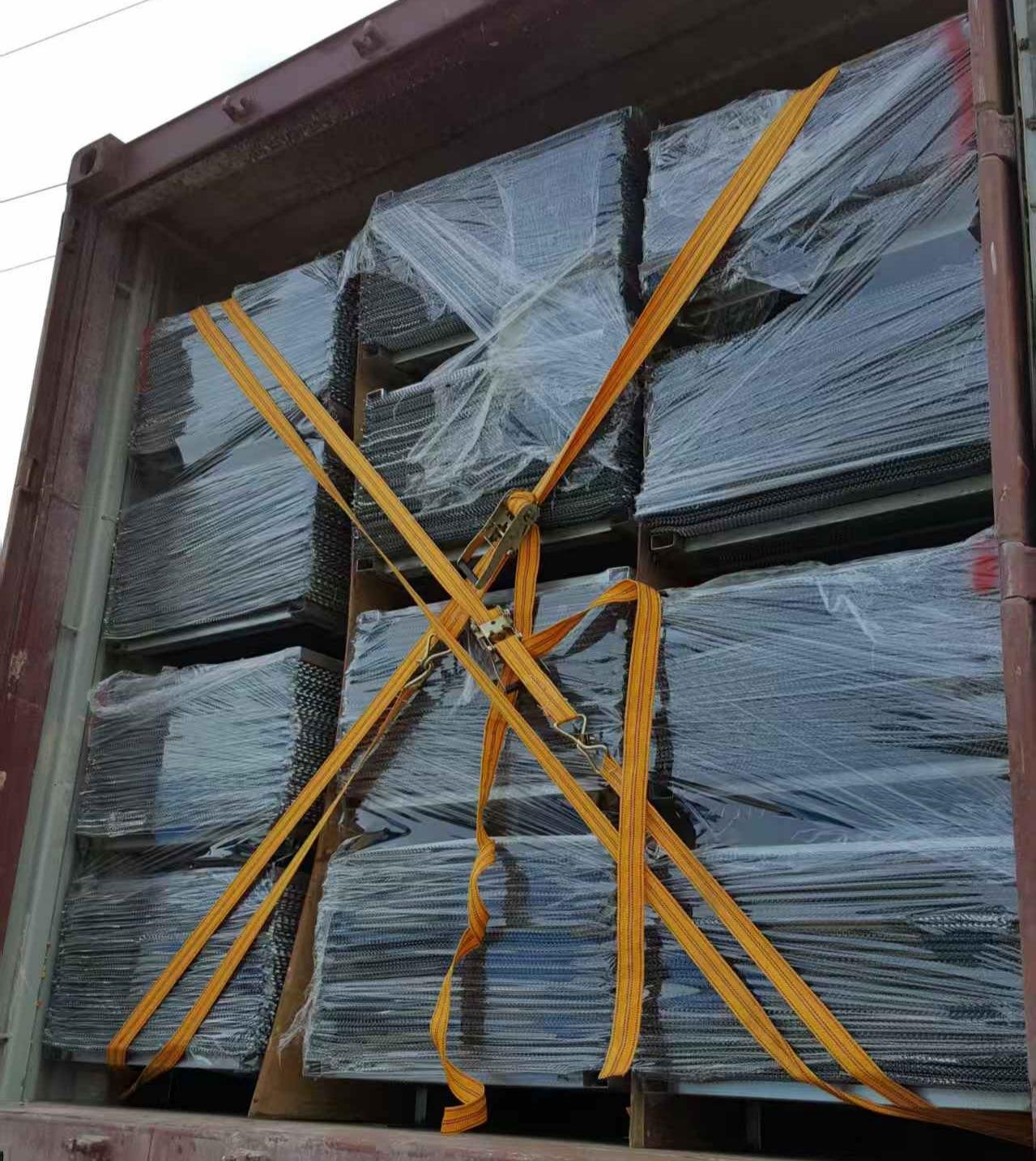

Container Loading
Packed orders are carefully loaded into containers and prepared for safe international transportation.
Manufacturer Direct Supply
Factory-controlled production with competitive pricing and direct communication.
Galvanized & Stainless Steel Materials
High-quality galvanized and stainless steel options for different construction requirements.
Customized Dimensions Available
Custom sizes, specifications and designs are available according to project needs.
Stable Production Capacity
Reliable manufacturing capability ensures consistent quality and on-time delivery.
Global Export Experience
Serving international construction markets with professional export experience.
Need Technical Support?
Contact ALLIEDMESH for product specifications, customized solutions and quotation. Our technical team is ready to support your construction projects.
