Concrete Tie Rod | Formwork Tie Rod System
Concrete Tie Rod is an essential component of concrete formwork systems, designed to connect and stabilize formwork panels during concrete pouring. Manufactured from high-strength steel, it provides reliable tensile strength and accurate positioning for concrete walls and structural applications. ALLIEDMESH Tie Rod systems can be used with formwork nuts, wing nuts, water stoppers, cones, and other accessories to create complete concrete forming solutions. Different diameters, lengths, and surface treatments are available according to project requirements.

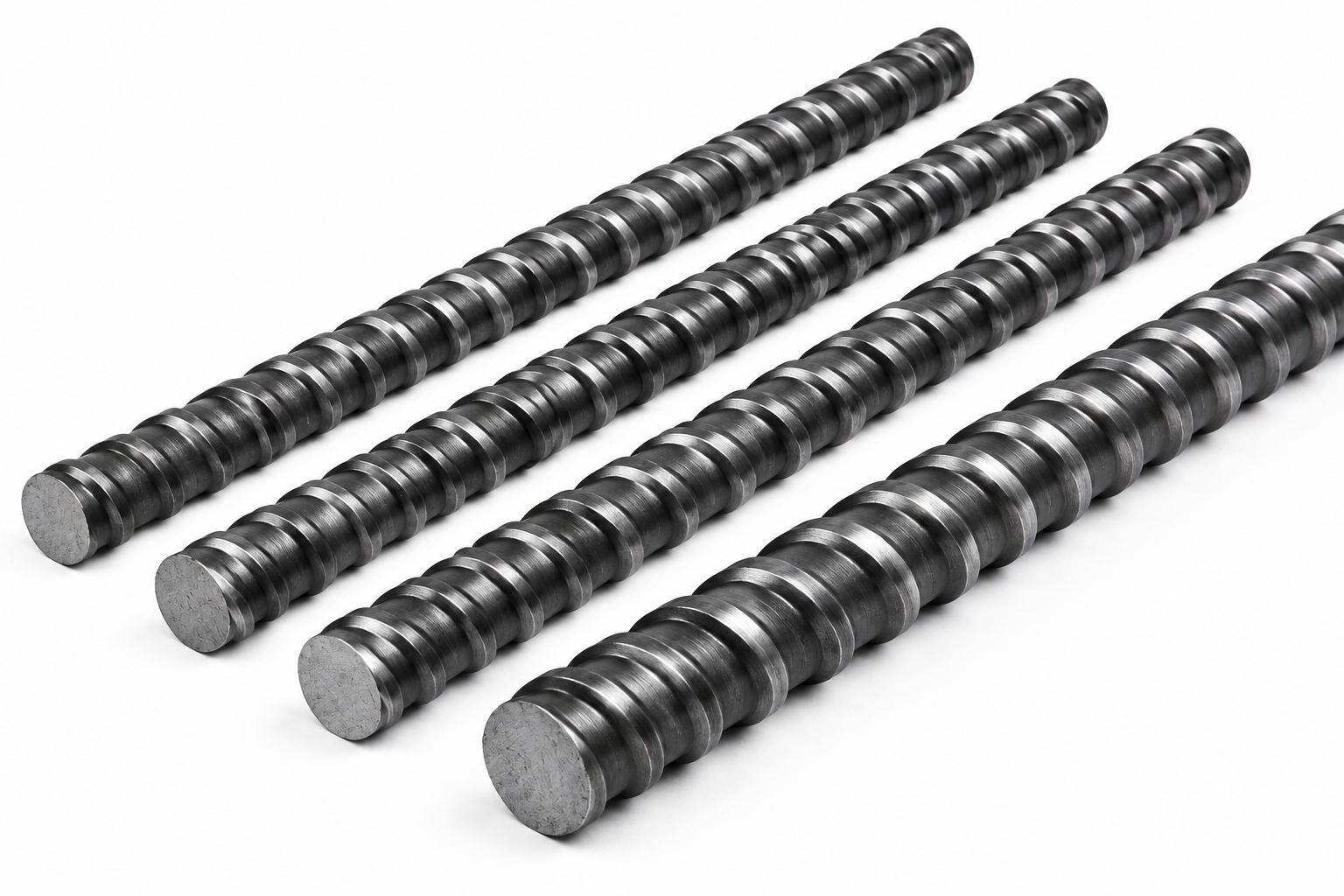

Formwork Cold Rolled Tie Rod
Concrete formwork DW15 tie rod system designed to connect and stabilize formwork panels during concrete construction.
| Material | Q235, 45# Steel, Special Mixture Steel |
|---|---|
| Diameter | D12mm / D15mm / D20mm |
| Weight | 0.75kg/m (D12) | 1.50kg/m (D15) | 2.32kg/m (D20) |
| Ultimate Load | 70kn – 260kn |
| Surface | Galvanized or Natural |
| Packing | Bundles |

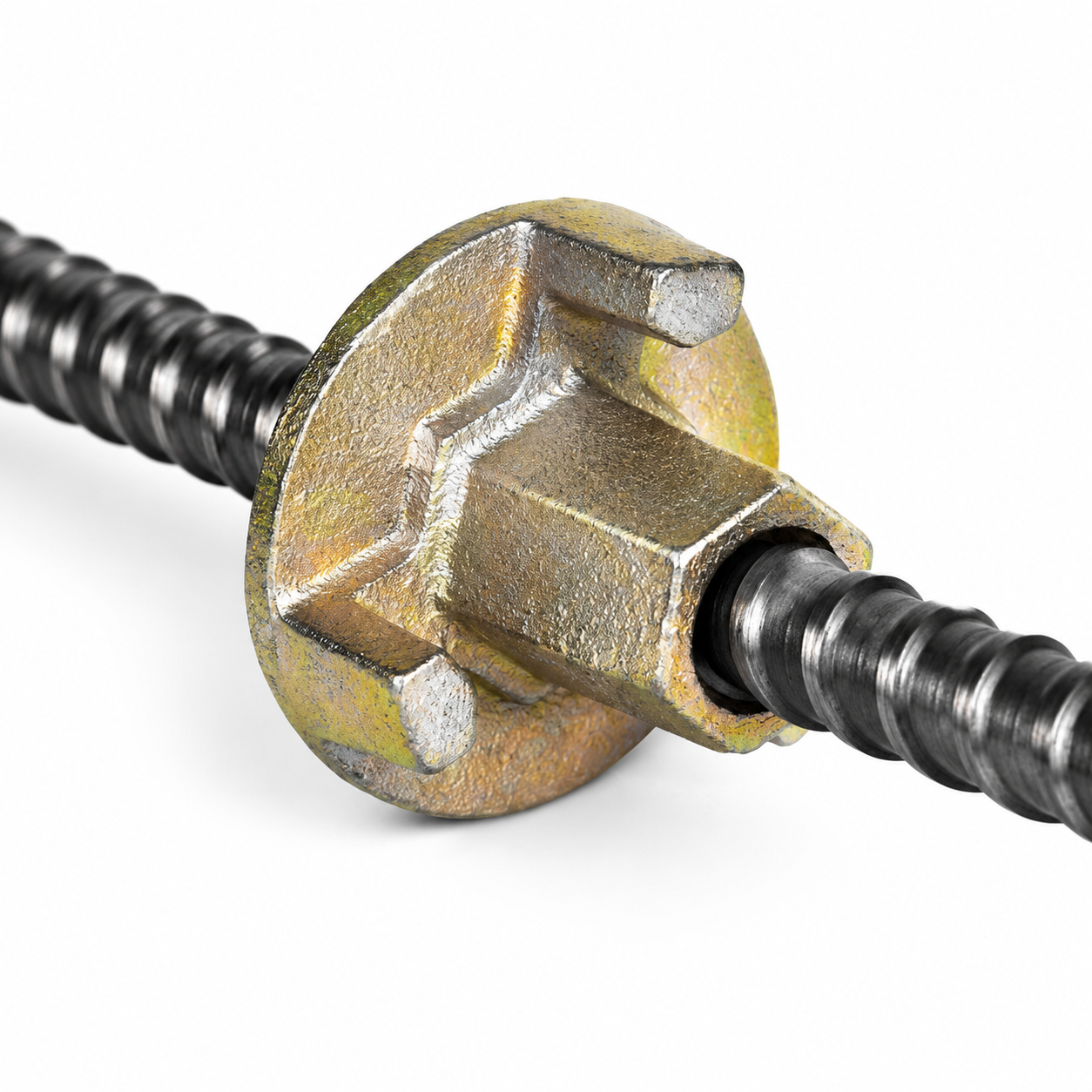

Ductile Iron Casting Formwork Tie Nut
Heavy-duty ductile iron tie nut designed for DW15 concrete formwork tie rod systems and related formwork accessories.
| Material | Ductile Iron Casting |
|---|---|
| Diameter | D12 / D15 / D20mm |
| Plate Size | D70 – D120mm |
| Ultimate Load | > 180kn |
| Surface | Galvanized / Natural |
| Color | Gold / Silver / Black |
| Application | Formwork Tie Rod System |
| Packing | Bags / Pallets |
| Capacity | 300t / Month |
| Related | Tie Rod, Wing Nut, Water Stop, Hex Nut, etc. |
Manufacturer Direct Supply
Factory-controlled production with competitive pricing and direct communication.
Galvanized & Stainless Steel Materials
High-quality galvanized and stainless steel options for different construction requirements.
Customized Dimensions Available
Custom sizes, specifications and designs are available according to project needs.
Stable Production Capacity
Reliable manufacturing capability ensures consistent quality and on-time delivery.
Global Export Experience
Serving international construction markets with professional export experience.
Need Technical Support?
Contact ALLIEDMESH for product specifications, customized solutions and quotation. Our technical team is ready to support your construction projects.
