BRICK MESH
Brick & Plastering Mesh is designed to reinforce masonry walls and plastering systems, helping reduce cracking caused by thermal expansion, shrinkage, vibration, and movement stresses.It is widely used in areas where different materials meet, such as the junctions between concrete, cement, brickwork, and other building substrates. The mesh provides additional reinforcement and improves the strength and durability of plaster and render layers.Manufactured from high-quality steel with excellent bonding performance, Brick & Plastering Mesh helps create a stable surface for plastering applications while minimizing the risk of cracks and surface defects.
| Model | Width | Length | Wing Width | Wing Length | Packaging |
|---|---|---|---|---|---|
| Wiremesh 65mm | 65mm | 1220mm | 38mm | 16mm | 500pcs/box |
| Wiremesh 100mm | 100mm | 1220mm | 38mm | 16mm | 500pcs/box |
| Wiremesh 150mm | 150mm | 1220mm | 38mm | 16mm | 500pcs/box |
| Wiremesh 200mm | 200mm | 1220mm | 38mm | 16mm | 500pcs/box |
| Item | Material | Weight (kg/sqm) |
Width × Length | Recommended Application |
|---|---|---|---|---|
| ML-01 | Galvanized Steel | 0.9 | 65mm × 100m | For 100mm Wall |
| ML-02 | Galvanized Steel | 0.9 | 115mm × 100m | For 150mm Wall |
| ML-03 | Galvanized Steel | 0.9 | 175mm × 100m | For 200mm Wall |
| ML-04 | Galvanized Steel | 0.9 | 225mm × 100m | For 250mm Wall |

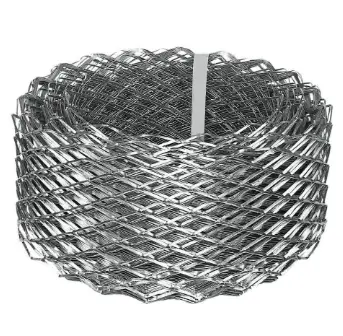

Brick Reinforcement Mesh ALLIEDMESH Brick Reinforcement Mesh is designed to improve the strength and durability of brick and block masonry walls. Installed within mortar joints, the mesh provides tensile reinforcement to control cracking caused by thermal expansion, shrinkage, vibration, and differential movement between building materials.Manufactured from galvanized steel or stainless steel, Brick Reinforcement Mesh creates a strong mechanical connection within masonry structures while maintaining flexibility during installation. It is widely used in brick walls, block work, cavity walls, and areas where different materials meet, such as brick-to-concrete junctions.Available in various widths, wire diameters, and roll lengths, ALLIEDMESH Brick Reinforcement Mesh can be supplied in standard sizes or customized according to project requirements. The lightweight coil design allows easy handling and installation
Key Features Crack Prevention Helps reduce cracking caused by thermal movement, shrinkage, and structural stress.Strong Masonry Reinforcement Improves tensile strength and distributes stress throughout brick and block walls.Easy Installation Supplied in convenient rolls for quick placement within mortar joints.Material Options Available in galvanized steel and stainless steel for different environmental conditions.Custom Solutions Different widths, wire sizes, and specifications are available according to customer requirements.
